The Ford Small Block Intake FYI, version 00.12.18
created and maintained by: [email protected]
Corrections and submissions are welcome. Please send them via email
to [email protected], or PO Box 181, Jacksonville AR
72078-0181 USA.
This is a compendium of the information I have available on Ford small
block intake manifolds.
There are five series of small block Ford intake manifolds:
8.206" deck Windsor - 221, 255, 260, 289, 302
8.206" deck Cleveland - BOSS 302
9.2" deck Cleveland - 351C-4V, 351C-2V, BOSS 351, 351HO
note: the 1993 "BOSS 351" crate motor is a *Windsor*,
not a Cleveland. Those yoyos at Ford...
9.506" deck Windsor - 351W
10.3" deck Cleveland - 351M, 400
There are also 9.2" Windsors and 9.5" Clevelands if you assemble various
SVO parts as recommended in the Motorsport catalog, but no complete
engines were ever shipped that way. B&A Ford Performance made dual
and single plane intakes to mate 9.5" Clevelands using 351W blocks and
351C heads.
Section I - Carburetor Intakes
221-302
351 Windsor
BOSS 302
351 Cleveland
351M-400
Specials
Section II - Injection Intakes
221-302
351 Windsor
BOSS 302
351 Cleveland
351M-400
Specials
Uppers Only
=====================================================================
Section I - Carburetor Intakes
221-302
351 Windsor
BOSS 302
351C
351M-400
specials
Section I - Carburetor Intakes - 221-302
=====================================================================
=====================================================================

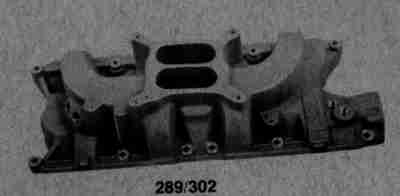

manufacturer: Ford Motorsport
intake model: M-9424-A321
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
351W 16-bolt pattern: no
carb bolt pattern: Holley
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: M-9424-A321
comments: same as Shelby, except says "Ford"
source: 1985 Motorsport ad insert
=====================================================================

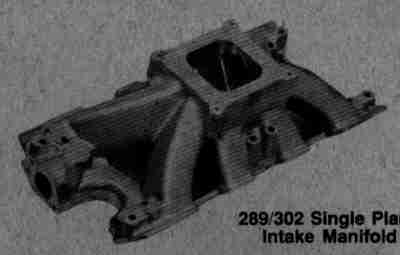

manufacturer: Ford Motorsport
intake model: M-9424-B302
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
351W 16-bolt pattern: no
carb bolt pattern: Holley
rear water crossover: yes
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: no
part number: M-9424-B302
comments: Motorsport-badged Edelbrock Victor Jr.
source: 1985 Motorsport ad insert
=====================================================================
manufacturer: Edelbrock
intake model: S.P.2.P. 289
engine:
material: aluminum
RPM range:
number of carbs: 1
351W 16-bolt pattern: no
carb bolt pattern: Holley
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.0" rear end: 4.3"
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 5256
comments: EGR provision optional
source: Edelbrock 1985 catalog
=====================================================================
manufacturer: Edelbrock
intake model: S.P.2.P. 289-2V
engine:
material: aluminum
RPM range:
number of carbs: 1
351W 16-bolt pattern: no
carb bolt pattern: Holley 2BBL
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.8" rear end: 4.8"
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 3355
comments: EGR provision optional
source: Edelbrock 1985 catalog
=====================================================================
manufacturer: Edelbrock

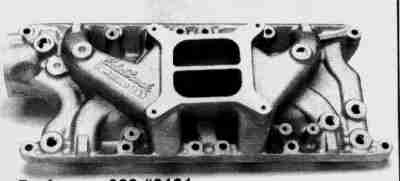

intake model: Performer 289
engine:
material: aluminum
RPM range: idle-5500
number of carbs: 1
351W 16-bolt pattern: no
carb bolt pattern: Holley
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.5" rear end: 4.75"
plenum volume:
approximate price:
weight: 15 pounds (1)
CARB approval: yes
part number: 2121
comments:
source: Edelbrock 1992 catalog
(1) [email protected]
=====================================================================
manufacturer: Edelbrock
intake model: Performer 289
engine:
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.5" rear end: 4.75"
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 2121
comments:
source: Edelbrock 1984 catalog
=====================================================================

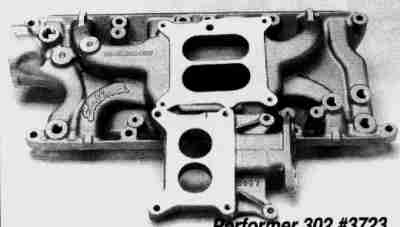

manufacturer: Edelbrock
intake model: Performer 302
engine:
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.125" rear end: 4.312"
plenum volume:
approximate price:
weight:
CARB approval: yes
part number:
comments:
source: Edelbrock 1992 catalog
=====================================================================

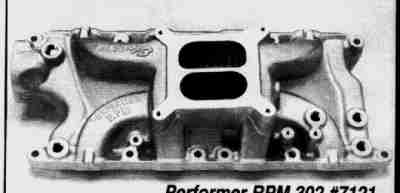

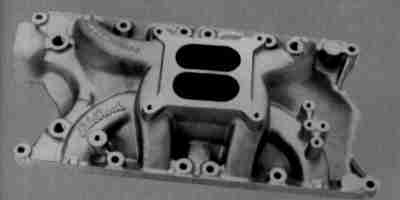

manufacturer: Edelbrock
intake model: Performer RPM 302 #7121
engine:
material: aluminum
RPM range: 1500-6500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 4.3" rear end: 5.5"
plenum volume:
approximate price:
weight:
CARB approval: yes
part number:
comments:
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Edelbrock
intake model: Torker II 302
engine:
material: aluminum
RPM range: 2500-6500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: yes
configuration: single plane X
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 4.0" rear end: 5.18"
plenum volume:
approximate price:
weight:
CARB approval: no
part number:
comments:
source: Edelbrock 1992 catalog
=====================================================================

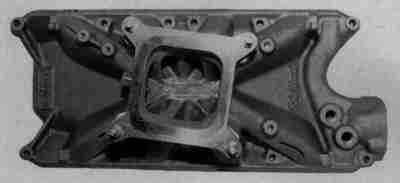

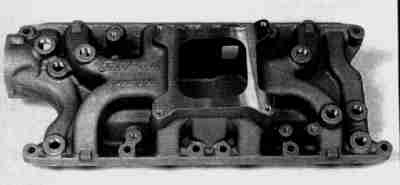

manufacturer: Edelbrock
intake model: Torker 289
engine:
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane X
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 2755
comments: carb twisted about 15 degrees to the right
source: Edelbrock 1985 catalog
This one has had some grinding done in the plenum area by an engine builder;
stock intakes have the runners extended a bit farther into the plenum.
=====================================================================

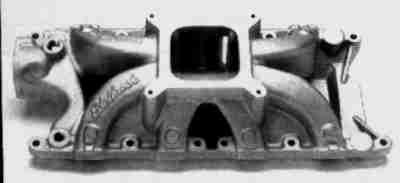

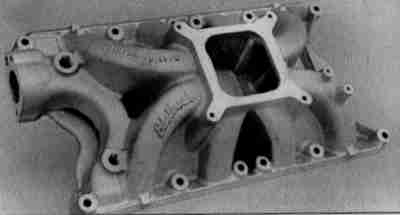

manufacturer: Edelbrock
intake model: Victor Jr. 302
engine:
material: aluminum
RPM range: 3500-8000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane X
runner size at port: 1.90 x 1.08
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 5.5" rear end: 5.5"
plenum volume:
approximate price:
weight:
CARB approval: no
part number:
comments: runners can be opened up to 2.10 x 1.25
source: Edelbrock 1992 catalog
=====================================================================

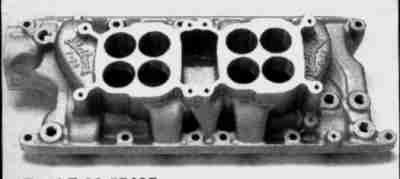

manufacturer: Edelbrock
intake model: F-28
engine:
material: aluminum
RPM range: 1500-6500
number of carbs: 2
carb bolt pattern: Carter
351W 16-bolt pattern: no
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.9" rear end: 4.75"
plenum volume:
approximate price:
weight:
CARB approval: no
part number:
comments: carb center to center 6-7/16"
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Offenhauser
intake model: Turbo Thrust
engine: 289/302
material: aluminum
RPM range:
number of carbs: see comments
carb bolt pattern: see comments
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: tunnel ram
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5914 base, 5915 single quad top, 5916 dual quad
top, 5991 single spreadbore top, 5929 Holley
single Dominator top, 5982 3 Weber IDA top,
6102 special low volume single quad (Holley or
spread bore) top
comments:
source: Offenhauser catalog
=====================================================================

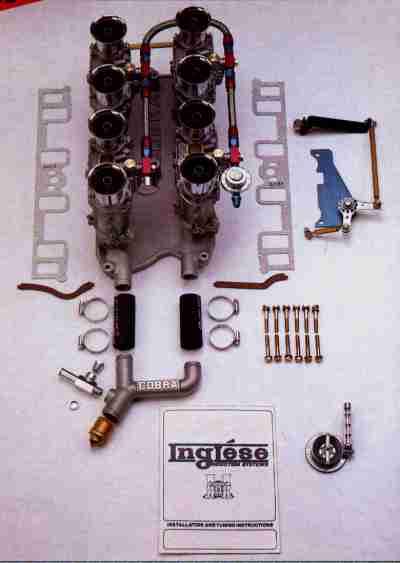

manufacturer: Inglese
intake model: Cobra repro
engine: 289/302
material: aluminum
RPM range:
number of carbs: 4
carb bolt pattern: Weber 48 IDA
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: individual runner
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price: $2,200 with carburetors
weight:
CARB approval: no
part number:
comments: available for 289/302, BOSS 302, 351 Cleveland
source:
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6009-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Ford Power Parts
intake model:
engine: 289/302
material: aluminum
RPM range: to 7500
number of carbs: 2
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: FPP 4240
comments: high rise, has heat risers
source: PHR Jan 88
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6010-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Holley
intake model: Street Dominator
engine: 289/302 Windsor
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern: n/a
rear water crossover: no crossover, but drilled and tapped
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 300-30Z
comments: full height plenum divider
source: Holley 1984 catalog
=====================================================================
manufacturer: Holley
intake model: Street Dominator
engine: 289/302 Windsor
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 300-6
comments: no plenum divider
source: Holley 1984 catalog
=====================================================================
manufacturer: Weiand
intake model: 2P-180
engine: 289/302
material: aluminum
RPM range: idle-6000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight: 17 pounds
CARB approval:
part number: 8003 with EGR, 8006 without
comments:
source: Weiand catalog 1985
=====================================================================
manufacturer: Weiand
intake model: X-Celerator
engine: 289/302
material: aluminum
RPM range: 1500-6500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight: 15 pounds
CARB approval:
part number: 7515
comments:
source: Weiand catalog 1985
=====================================================================

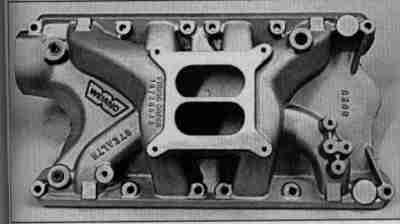

manufacturer: Weiand
intake model: Stealth
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 8020
comments:
source: from ad photo
=====================================================================

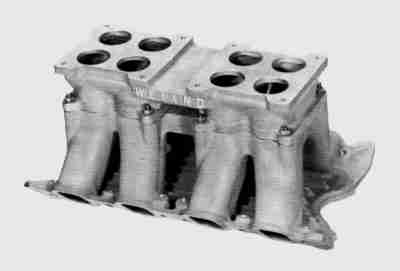

manufacturer: Weiand
intake model: Hi-Ram
engine: 289/302
material: aluminum
RPM range: 3000-8500
number of carbs: see comment
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: yes
configuration: tunnel ram
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight: 23 pounds
CARB approval:
part number: 1988 for dual quad, 3988 for single quad
comments:
source: Weiand catalog 1985
=====================================================================
manufacturer: Ford Power Parts (FPP)
intake model:
engine: 289/302
material: aluminum
RPM range:
number of carbs: 2
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 4240
comments: accepts 427-8V air cleaner assembly
source: FPP Catalog #3, 1991
=====================================================================
manufacturer: Ford Power Parts (FPP)
intake model:
engine: 289/302
material: aluminum
RPM range:
number of carbs: 3
carb bolt pattern: Holley 2V
351W 16-bolt pattern: no
rear water crossover: no
configuration:
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 4235
comments: close copy of Ford/Shelby 3x2 intake. Has 260
vent tube provision at rear
source: FPP Catalog #3, 1991
=====================================================================
manufacturer: Offenhauser
intake model: Port-O-Sonic
engine: 289/302
material: aluminum
RPM range: 4000-8000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6071
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Port-O-Sonic
engine: 289/302
material: aluminum
RPM range: 4000-8000
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6072
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5691
comments: high rise
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley Dominator
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5958
comments: high rise
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 "Single Quadrajet High Rise"
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern: n/a
rear water crossover:
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5751
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 "Single Quadrajet Low Rise"
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern: n/a
rear water crossover:
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5602
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover:
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5493
comments: low rise
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow Dual Quad
engine: 289/302
material: aluminum
RPM range:
number of carbs: 2
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover:
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5486
comments: low rise - works with AFB carbs only; no Holleys,
not even sideways
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow Dual Quad
engine: 289/302
material: aluminum
RPM range:
number of carbs: 2
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover:
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5702
comments: high rise - works with AFB carbs only; no Holleys,
not even sideways
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dial-A-Flow
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley Dominator
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6126
comments: has interchangeable "turtles" to adjust plenum
source: Offenhauser catalog
=====================================================================
manufacturer: Weiand
intake model: Action Plus
engine: 289/302
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no, but has bosses for 4-corner cooling
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 8011
comments: low profile
source: from ad photo
Section I - Carburetor Intakes - 351 Windsor
=====================================================================
=====================================================================

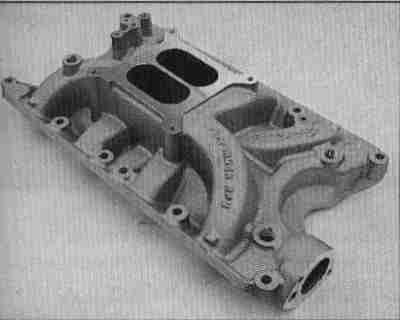

manufacturer | Ford
intake model | 351W
material | aluminum
RPM range
351W 16-bolt pattern | no
rear water crossover
manifold type | dual plane
carburetor flange | square
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number | M-9424-Z351
comments | Ford-badged Edelbrock Performer RPM
unattributed data | Engines 1994
sources |
=====================================================================
manufacturer: Edelbrock
intake model: S.P.2.P. 351W-2V
engine:
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley 2BBL
351W 16-bolt pattern: no
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 2.700 rear end: 3.900
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 5161
comments: has EGR provision
source: Edelbrock 1985 catalog
=====================================================================
manufacturer: Edelbrock
intake model: Performer 351W
engine:
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.400 rear end: 4.750
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 2181
comments:
source: Edelbrock 1985 catalog
=====================================================================

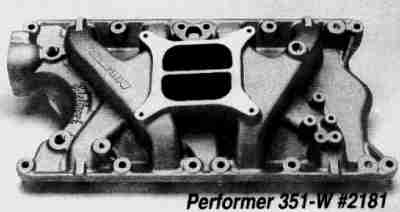

manufacturer: Edelbrock
intake model: Performer 351-W
engine:
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 2181
comments:
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Edelbrock

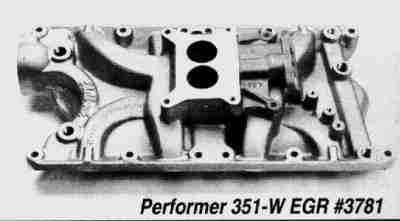

intake model: Performer 351-W EGR
engine:
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: Holley 2bbl
351W 16-bolt pattern: no
rear water crossover: yes
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 3781
comments: main difference between this and Performer
351-W is this one comes with a 2bbl carb
adapter and rear water
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Edelbrock
intake model: Performer RPM 351-W
engine: 351 Windsor
material: aluminum
RPM range: 1500-6500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 4.3" rear end: 5.3"
plenum volume:
approximate price:
weight:
CARB approval: no
part number:
comments: will not fit under hood of '74-'91 Mustang
will fit '65-'70 Mustang
source: Edelbrock 1992 catalog
=====================================================================

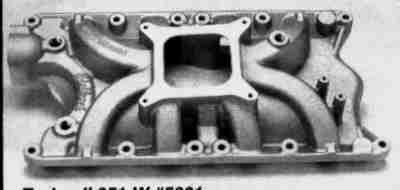

manufacturer: Edelbrock
intake model: Torker II 351-W
engine: 351 Windsor
material: aluminum
RPM range: 2500-6500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane X
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: no
part number:
comments:
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Edelbrock

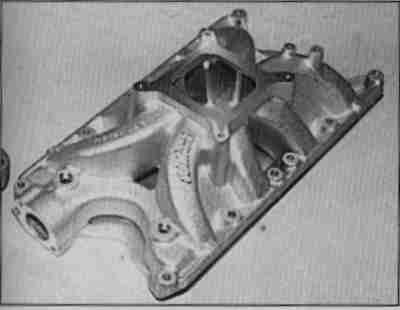

intake model: Victor Jr. 351-W
engine: 351 Windsor
material: aluminum
RPM range: 3500-7500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane X
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: no
part number:
comments: air gap under plenum
source: Edelbrock 1992 catalog
note: 9.5" Windsor deck height
=====================================================================

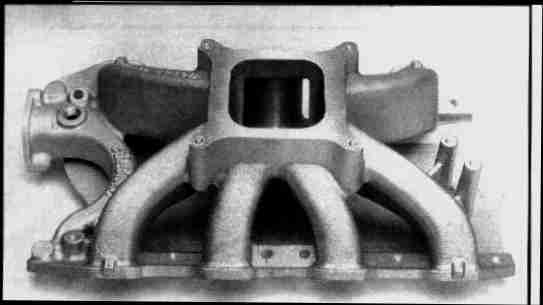

manufacturer | Ford
intake model | 351W
material | aluminum
RPM range
351W 16-bolt pattern | no
rear water crossover
manifold type | single plane, air gap
carburetor flange | square
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number | M-9424-V351
comments | Ford-badged Edelbrock Victor Jr.
unattributed data | Engines 1994
sources |
=====================================================================
manufacturer: Holley
intake model: Street Dominator
engine: 351W
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 300-18
comments: no plenum divider. Looks more like a high
RPM part than the usual 351W motorhome stuff
source: Holley 1984 catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: yes
rear water crossover:
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6011-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: yes
rear water crossover:
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6011-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: yes
rear water crossover:
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6012-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover:
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6039-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: no
rear water crossover:
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6140-DP
comments:
source: Offenhauser catalog
=====================================================================

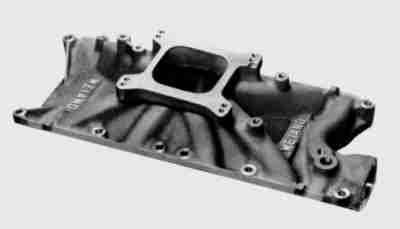

manufacturer: Weiand
intake model: 351 Stealth
engine: 351W
material: aluminum
RPM range: up to 6800
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no, but has bosses
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number:
comments:
source: SF Dec 95
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: yes
rear water crossover: no
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5883
comments: high rise
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6150
comments: high rise
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley Dominator
351W 16-bolt pattern: n/a
rear water crossover:
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5959
comments: high rise
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 "Single Quadrajet High Rise"
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern:
rear water crossover:
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5889
comments:
source: Offenhauser catalog
=====================================================================

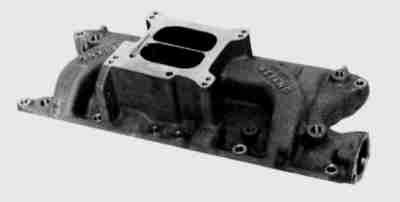

manufacturer: Weiand
intake model: Stealth
engine: 351W
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no, but has bosses for 4-corner cooling
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 8023
comments:
source: from ad photo
Section I - Carburetor Intakes - BOSS 302
=====================================================================
=====================================================================
manufacturer: Offenhauser
intake model: Turbo Thrust
engine: BOSS 302
material: aluminum
RPM range:
number of carbs: see comments
carb bolt pattern: see comments
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: tunnel ram
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5931 base, 5932 single quad top, 5934 dual quad
top, 5992 single spreadbore top, 5933 Holley
single Dominator top, 5982 3 Weber IDA top,
6102 special low volume single quad (Holley or
spread bore) top
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Weiand
intake model: Hi-Ram
engine: BOSS 302
material: aluminum
RPM range: 3000-8500
number of carbs: 2
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: tunnel ram
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight: 23 pounds
CARB approval:
part number: 1989
comments:
source: Weiand catalog 1985

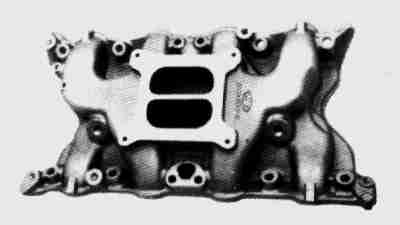

Section I - Carburetor Intakes - 351 Cleveland
=====================================================================
manufacturer | Ford
intake model | 351C 4V
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | n/a
manifold type | dual plane
carburetor flange | square
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number | M-9424-G351
comments | Ford-badged Edelbrock casting
unattributed data |
sources |
=====================================================================
manufacturer: Ford Power Parts (FPP)
intake model:
engine: 351C-4V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 4145
comments:
source: FPP Catalog #3, 1991
=====================================================================

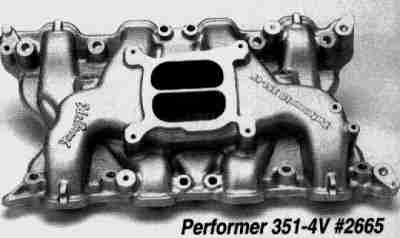

manufacturer: Edelbrock
intake model: Performer 351 4V
engine: 351 Cleveland
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.50 rear end: 4.30
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 2665 non-EGR
comments: for 4V Cleveland heads
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Edelbrock
intake model: Performer 351 2V
engine: 351 Cleveland 2V
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.50 rear end: 4.30
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 2750 non-EGR
comments: for 2V Cleveland heads
source: Edelbrock 1992 catalog
=====================================================================

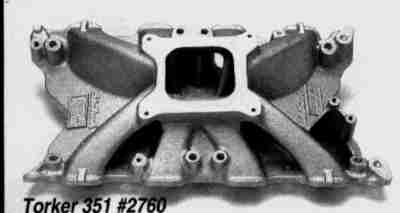

manufacturer: Edelbrock
intake model: Torker 351
engine: 351 Cleveland
material: aluminum
RPM range: 3000-7000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 4.90 rear end: 5.90
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 2760
comments: for 4V Cleveland heads
source: Edelbrock 1992 catalog
=====================================================================

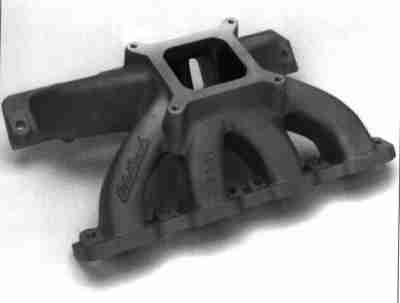

manufacturer | Edelbrock
intake model | Victor 351-Y
material | aluminum
engine | 351C SVO
RPM range
351W 16-bolt pattern | n/a
rear water crossover | n/a
carb bolt pattern Holley
type single plane, air gap
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval | no
part number | 2961
comments |
unattributed data | NASCAR Garage Winter 1999
sources |
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351C-4V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6013-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351C-4V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6014-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351C-2V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6110-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351C-2V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6111-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Port-O-Sonic
engine: 351C-4V
material: aluminum
RPM range: 4000-8000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6120
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Port-O-Sonic
engine: 351C-4V
material: aluminum
RPM range: 4000-8000
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6121
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Port-O-Sonic
engine: 351C-2V
material: aluminum
RPM range: 4000-8000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6122
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Port-O-Sonic
engine: 351C-2V
material: aluminum
RPM range: 4000-8000
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6123
comments:
source: Offenhauser catalog
=====================================================================

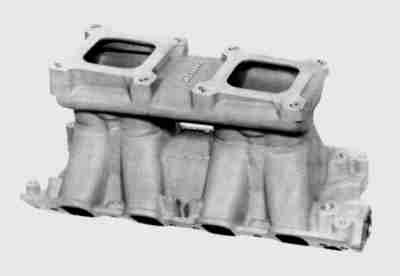

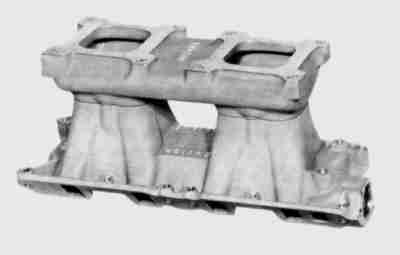

manufacturer: Weiand
intake model: Hi-Ram
engine: 351C-4V
material: aluminum
RPM range: 3000-9000
number of carbs: 2
carb bolt pattern: Holley (see comment)
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: tunnel ram
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight: 26 pounds
CARB approval:
part number: 1994 for '660' carbs, 2994 for Dominators
comments:
source: Weiand catalog 1985
=====================================================================
manufacturer: Holley
intake model: Street Dominator
engine: 351C-2V
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 300-12
comments: no plenum divider. Universal fit for
both 2V and 4V heads.
source: Holley 1984 catalog
=====================================================================

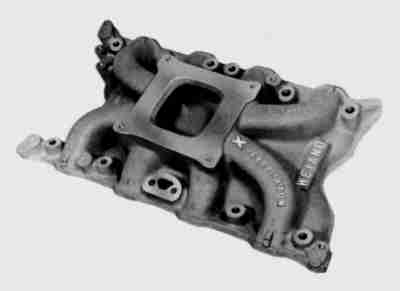

manufacturer: Weiand
intake model: X-Celerator
engine: 351V-4V
material: aluminum
RPM range: 1500-7000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight: 16 pounds
CARB approval:
part number: 7517
comments:
source: Weiand catalog 1985
=====================================================================
manufacturer: Weiand
intake model: X-Celerator
engine: 351C-2V
material: aluminum
RPM range: 1500-7000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight: 16 pounds
CARB approval:
part number: 7516
comments:
source: Weiand catalog 1985
=====================================================================
manufacturer: Offenhauser
intake model: Turbo Thrust
engine: 351C
material: aluminum
RPM range:
number of carbs: see comments
carb bolt pattern: see comments
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: tunnel ram
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5935 base, 5936 single quad top, 5938 dual quad
top, 5993 single spreadbore top, 5937 Holley
single Dominator top, 5983 3 Weber IDA top,
6102 special low volume single quad (Holley or
spread bore) top
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow
engine: 351C-4V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5964
comments: high rise
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 Equa-Flow
engine: 351C-4V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley Dominator
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5966
comments: high rise
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: 360 "Single Quadrajet High Rise"
engine: 351C-4V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern:
rear water crossover:
configuration: single plane, plenum
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 5965
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dial-A-Flow
engine: 351C-4V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley Dominator
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6127
comments: has interchangeable "turtles" to adjust plenum
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dial-A-Flow
engine: 351C-2V
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley Dominator
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6128
comments: has interchangeable "turtles" to adjust plenum
source: Offenhauser catalog
=====================================================================
manufacturer: Holley
intake model: Strip Dominator
engine: 351C-4V
material: aluminum
RPM range: 4500-8500 RPM
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 300-13
comments: no plenum divider. air gap plenum
source: Holley 1984 catalog
Section I - Carburetor Intakes - 351M-400
=====================================================================
manufacturer: Edelbrock
intake model: Performer 400 EGR
engine: 351M/400
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.60 rear end: 4.75
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 2171
comments: for 351M-400, 2V Cleveland heads
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Edelbrock
intake model: Performer 400 Non-EGR
engine: 351M/400
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.60 rear end: 4.75
plenum volume:
approximate price:
weight:
CARB approval: no
part number: 2171
comments: for 351M-400, 2V Cleveland heads
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Edelbrock
intake model: S.P.2.P. 400
engine:
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.500 rear end: 4.900
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 3370
comments:
source: Edelbrock 1985 catalog
=====================================================================
manufacturer: Edelbrock
intake model: S.P.2.P. 400-2V
engine:
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley 2BBL
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 3.700 rear end: 4.950
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 5171
comments:
source: Edelbrock 1985 catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351M
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6141-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 351M
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6142-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 400
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6033-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Offenhauser
intake model: Dual Port
engine: 400
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: spread bore
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: '360 degree' single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: 6034-DP
comments:
source: Offenhauser catalog
=====================================================================
manufacturer: Weiand
intake model: 2P-180
engine: 351M-400
material: aluminum
RPM range:
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: n/a
configuration: dual plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight: 21 pounds
CARB approval:
part number: 8010
comments: 2V heads
source: Weiand catalog 1985
=====================================================================
manufacturer: Holley
intake model: Street Dominator
engine: 351M-400
material: aluminum
RPM range: idle-5500
number of carbs: 1
carb bolt pattern: spreadbore
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: 300-20
comments: no plenum divider.
source: Holley 1984 catalog
Section I - Carburetor Intakes - Specials
=====================================================================
manufacturer: Edelbrock
intake model: Victor 351 AH-II
engine:
material: aluminum
RPM range: 4500-8000
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: n/a
rear water crossover: no
configuration: single plane
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height: front end: 7.358 rear end: 7.358
plenum volume:
approximate price:
weight:
CARB approval: no
part number:
comments: for 4V Cleveland heads. requires Windsor style
water passages in heads. air gap design.
fits raised-port SVO style heads
source: Edelbrock 1992 catalog
=====================================================================
manufacturer: Edelbrock
intake model: Victor Jr. 351-W
engine: 351 Windsor
material: aluminum
RPM range: 3500-7500
number of carbs: 1
carb bolt pattern: Holley
351W 16-bolt pattern: no
rear water crossover: no
configuration: single plane X
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: no
part number:
comments: air gap under plenum
source: Super Ford, Feb 1996
notes: 9.2 deck height for SVO blocks
=====================================================================
manufacturer | B&A Ford Performance
intake model | Street BOSS
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | no
# of carburetors | 1
carburetor bolt pattern | Holley
configuration | dual plane
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price | $265
weight |
CARB approval | no
part number | 101
comments | adapts 351C-2V heads to 302 block
unattributed data | B&A brochure, 1991
sources |
=====================================================================
manufacturer | B&A Ford Performance
intake model | Track BOSS
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | no
# of carburetors | 1
carburetor bolt pattern | Holley
configuration | single plane, air gap
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price | $265
weight |
CARB approval | no
part number |
comments | adapts 351C-2V heads to 289/302 block
unattributed data | B&A brochure, 1991
sources |
=====================================================================
manufacturer | B&A Ford Performance
intake model | Street BOSS 351W
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | no
# of carburetors | 1
carburetor bolt pattern | Holley
configuration | dual plane
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price | $265
weight |
CARB approval | no
part number | 102
comments | adapts 351C-2V heads to 351W block
unattributed data | B&A brochure, 1991
sources |
=====================================================================
manufacturer | B&A Ford Performance
intake model | Track BOSS 351W
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | no
# of carburetors | 1
carburetor bolt pattern | Holley
configuration | single plane
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price | $265
weight |
CARB approval | no
part number |
comments | adapts 351C-2V heads to 289/302 block
unattributed data | B&A brochure, 1991
sources |
=====================================================================
manufacturer: Weiand
product : intake spacers
engine: 351C intake on 351M-400
material: aluminum
runner size at port: 2V
part number: 8205
comments:
source: Weiand catalog 1985
=====================================================================
=====================================================================
=====================================================================
Section II - Injection Intakes
221-302
351 Windsor
BOSS 302
351 Cleveland
351M-400
specials
uppers only
=====================================================================
=====================================================================
=====================================================================
Section II - Injection Intakes - 221-302
=====================================================================
=====================================================================
manufacturer | Ford
intake model | 1993 5.0 Thunderbird (curved snout)
material | aluminum
RPM range
351W 16-bolt pattern | no
rear water crossover
# of throttle bodies | 1
throttle body location | (side)
largest throttle body |
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval | yes
part number |
comments | Extrude Hone data
| runner before after
| (stock) (honed)
| 1 158 224
| 2 167 227
| 3 158 221
| 4 170 227
| 5 144 222
| 6 161 221
| 7 158 224
| 8 170 221
unattributed data | Ford High Performance June 1995
sources |
=====================================================================
manufacturer: Ford
intake model: 302 truck, E5TE base, E7TE top
material: cast aluminum
RPM range:
number of throttle bodies: 2
largest throttle body:
351W 16-bolt pattern: no
rear water crossover:
location of throttle body: (front)
runner size at port:
runner volume:
runner cross section shape: rectangular
runner cross section area:
runner length: ~18"
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: E5TE/E7TE
comments: "dual plane" arrangement with separated
upper and lower plenums. Uses car fuel
rails. Injectors point "backwards" and
to short side of port wall.
source:
=====================================================================
manufacturer: Edelbrock
intake model: Performer 5.0L EFI
material: aluminum
RPM range: 1500-6000
number of throttle bodies: 1
largest throttle body:
351W 16-bolt pattern: n/a
rear water crossover:
location of throttle body: passenger side
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number:
comments:
source: SF Dec 95
=====================================================================
manufacturer: Edelbrock
intake model: Performer Truck 5.0
material: aluminum
RPM range:
number of throttle bodies: 1 single or double
largest throttle body:
351W 16-bolt pattern: no
rear water crossover:
location of throttle body: driver side
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number:
comments:
source: SF Dec 95
=====================================================================
manufacturer: Ford Motorsports
intake model: GT-40 M-6001-A50
material: aluminum
RPM range:
number of throttle bodies: 1
largest throttle body: 2.75" opening on manifold
351W 16-bolt pattern: n/a
rear water crossover: no, but has tapped holes
location of throttle body: passenger side
runner size at port:
runner volume:
runner cross section shape: round
runner cross section area: 1.65" dia
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number: M-9424-A51 tubular upper manifold
M-9461-A50 lower manifold
M-9474-A50 67mm EGR spacer
comments: tubular runners with zigzag manifold pattern,
round holes in manifold
source: SF Dec 95, Engines 1994
=====================================================================
manufacturer: Ford Motor Company
intake model: Cobra
engine: 5.0
material: aluminum
RPM range:
number of throttle bodies: 1
throttle body air entry: 2-3/4" (70mm)
351W 16-bolt pattern: no
rear water crossover: 2 x 3/8 NPT water takeoffs on back,
no rear water passage
location of throttle body: right side
runner size at port: .96 x 1.68 at manifold face
runner volume:
runner cross section shape: 1-5/8" round
runner cross section area:
runner length:
manifold height (base): A 4.6 B 4.6
manifold height (top): A 10-9/16 B 10-5/8
plenum volume:
approximate price:
weight: lower 16# upper 19#
total 35# - no MAF, injectors, rails
CARB approval:
part number:
comments:
source: [email protected]; measurements
notes 1) throttle body mounting neck ~4mm thick
2) huge water ports - 1.19 x 1.52
3) front runners approach at acute angle to port, like old style
single plane
=====================================================================
manufacturer | Hilborn
intake model |
engine | 221-302
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | n/a
# of throttle bodies | 8
throttle body location |
largest throttle body | 1-13/16"
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number | 260-F-8B
comments | mechanical fuel injection
unattributed data | Hilborn catalog 1998
sources |
=====================================================================
manufacturer | Holley
intake model | SysteMAX
material | aluminum
RPM range
351W 16-bolt pattern | no
rear water crossover
# of throttle bodies |
throttle body location |
largest throttle body |
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number |
comments | Raised/reshaped lower accepts stock Ford upper
unattributed data | Hot Rod Engines 1998
sources |
Section II - Injection Intakes - 351 Windsor
=====================================================================
=====================================================================
manufacturer: Edelbrock
intake model: Performer 351 EFI
material: aluminum
RPM range:
number of throttle bodies: 1
largest throttle body:
351W 16-bolt pattern:
rear water crossover:
location of throttle body: passenger side
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval: yes
part number:
comments: uses same upper as Performer 5.0
source:
=====================================================================
manufacturer: Edelbrock
intake model: Performer Truck 5.8
material: aluminum
RPM range:
number of throttle bodies: 1 single or double
largest throttle body:
351W 16-bolt pattern: no
rear water crossover:
location of throttle body: driver side
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number: PN 3881
comments:
source: SF Dec 95
Section II - Injection Intakes - BOSS 302
=====================================================================
=====================================================================
manufacturer | Hilborn
intake model |
engine | BOSS 302
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | n/a
# of throttle bodies | 8
throttle body location |
largest throttle body | 2-3/16"
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number | 302-F-8
comments | mechanical fuel injection
unattributed data | Hilborn catalog 1998
sources |
Section II - Injection Intakes - 351 Cleveland
=====================================================================
=====================================================================
manufacturer | Crower
intake model | Hi-Riser
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | n/a
# of throttle bodies | 8
throttle body location |
largest throttle body |
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number |
comments | mechanical fuel injection
unattributed data | Crower catalog 1983
sources |
=====================================================================
manufacturer | Hilborn
intake model |
engine | BOSS 351
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | n/a
# of throttle bodies | 8
throttle body location |
largest throttle body | 2-5/8"
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number | 351-F-8
comments | mechanical fuel injection
unattributed data | Hilborn catalog 1998
sources |
Section II - Injection Intakes - 351M-400
=====================================================================
Section II - Injection Intakes - Specials
=====================================================================
Section II - Injection Intakes - Uppers Only
=====================================================================
=====================================================================
manufacturer: Vortech
intake model: Shootout Series I (SO-1)
engine: 289/302
material: aluminum
RPM range:
number of carbs: n/a
carb bolt pattern: n/a
351W 16-bolt pattern: n/a
rear water crossover:
configuration: throttle body on passenger side
runner size at port:
runner volume:
runner cross section shape:
runner cross section area:
runner length:
manifold height:
plenum volume:
approximate price:
weight:
CARB approval:
part number:
comments: 5.0 EFI type, optionally has 8 injectors in the
plenum for better atomization
source: Hot Rod, October 1994
This is a second-design Shoot-Out manifold, circa 1996. It's supposed to be
five pounds lighter than the original, lower to improve hood clearance, and a
revised plenum. The base manifold is supposed to have 20% more area than the
Ford GT-40 base.
=====================================================================
manufacturer | Performance Resource
intake model | Hi-Flow (upper only)
material | aluminum
RPM range
351W 16-bolt pattern | n/a
rear water crossover | n/a
# of throttle bodies | 1
throttle body location | right side
largest throttle body | 75mm
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number |
comments | much larger plenum area than most box uppers
unattributed data |
sources | Hot Engine Special, Summer 1993
=====================================================================
manufacturer | Hartman
intake model | Composite Powerbox
material | plastic
RPM range | "300 higher than stock"
351W 16-bolt pattern | no
rear water crossover
# of throttle bodies |
throttle body location | passenger side
largest throttle body |
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight | "16 pounds lighter than stock"
CARB approval |
part number |
comments | available for 5.0 car and GT-40 bottoms
unattributed data | Hartman ad
sources |
=====================================================================
manufacturer | HMI
intake model | Civil Wars
material | sheet aluminum
RPM range |
351W 16-bolt pattern | n/a
rear water crossover | n/a
# of throttle bodies | 1
throttle body location | passenger side
largest throttle body |
runner size at port |
runner volume |
cross section shape |
cross section area |
runner length |
manifold height |
plenum volume |
approximate price |
weight |
CARB approval |
part number |
comments | available for car, truck, Gt-40, or Edelbrock lowers
unattributed data |
sources |
== Address List =====================================================
B&A Ford Performance Cleveland-to-Windsor intakes 08/92
PO Box 6553
Fort Smith AR 72906-6553
918-427-7757
Ford SVO OEM 08/92
44020 North Groesbeck Highway
Mt. Clemens, MI 48083-1115
313-337-1356 tech line
Inglese 06/86
PO Box 709
11 Tipping Drive
Branford CT 06405
203-481-5544
Performance Resource
12 Barbara Drive EFI upper 06/93
Fairfield NJ 07004
201-343-0680
Vortech Engineering EFI manifolds 10/94
5351 Bonsai Avenue
Moorpark CA 93021
805-529-9330
=====================================================================
========================= end of file ==============================
=====================================================================
========================= end of file ==============================
=====================================================================
Return to top
