Machining Wheel Spacers

These are the steps for making accurate wheel spacers. Yes, it's time consuming...

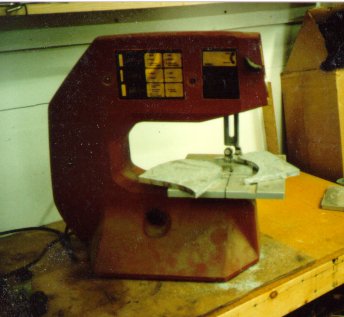

bandsawing circle out of 1/2" plate

circles dyed, scribed for drilling mounting holes

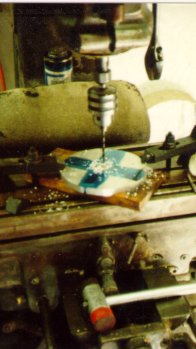

drilling center hole on mill

tapping mounting holes

bolting circles to lathe faceplate

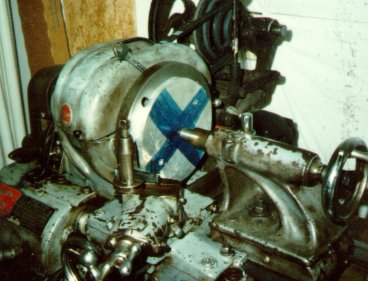

centering with tailstock

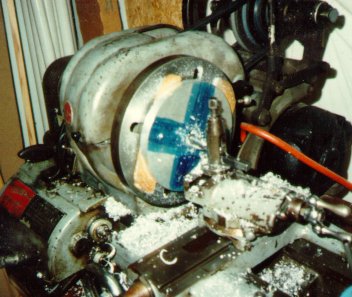

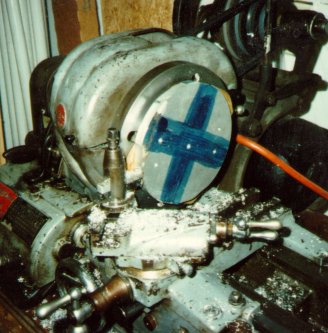

turning OD

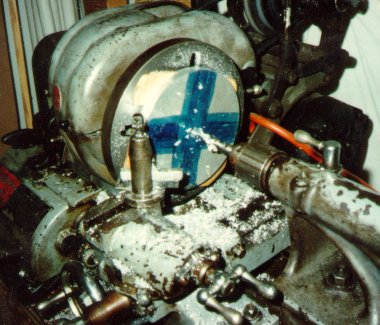

drilling center for boring bar

boring center hole

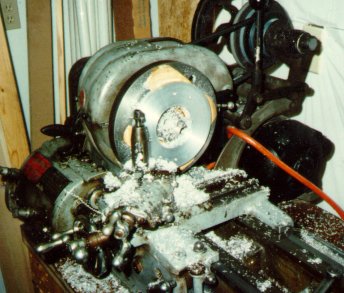

bored, faced off

flipped over, other side faced off

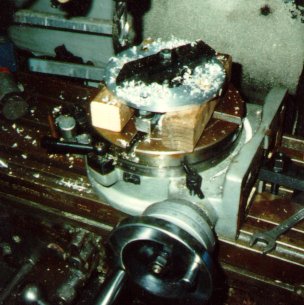

on rotary table on mill, plunge milling stud holes

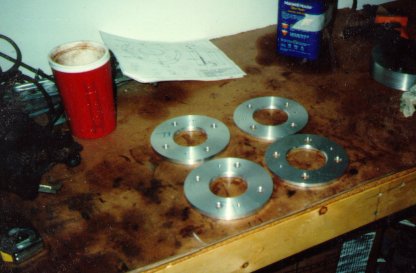

finished spacers
